Dual-Sided Precision & PTH

Double Layer PCB Manufacturer in India

Services and skills of Ronak Circuits — Precision Double-Sided Circuit Boards Engineered for High Routing Density

High Quality & Advanced Panel Capabilities

Double Layer PCB Solutions

As Ronak Circuits Pvt. Ltd., we bring expertise in manufacturing high-quality double-layer PCBs. We produce double-layer PCBs with our standard panel size of 508mm × 640mm and are expanding capabilities with advanced panel sizes up to 610mm × 1400mm. Double-layer or double-sided PCBs feature a base material coated with a thin conductive copper layer on both sides. Precision-drilled plated through-holes allow circuits on one side of the board to establish seamless electrical connections with the opposite side.

Properties of Double Sided PCBs

Board Thickness

0.2mm to 3.2mm (finished copper up to 3 oz)

Line Width & Spacing

6 / 6 mils (Sample lots available at 5 / 5 mils)

Minimum Finished Hole

Precision drilled holes starting from 0.3mm

Surface Finish Options

Solder Leveling / Lead-Free HASL / Chemical Tin / Chemical Gold (ENIG)

Double Layer PCB Gallery

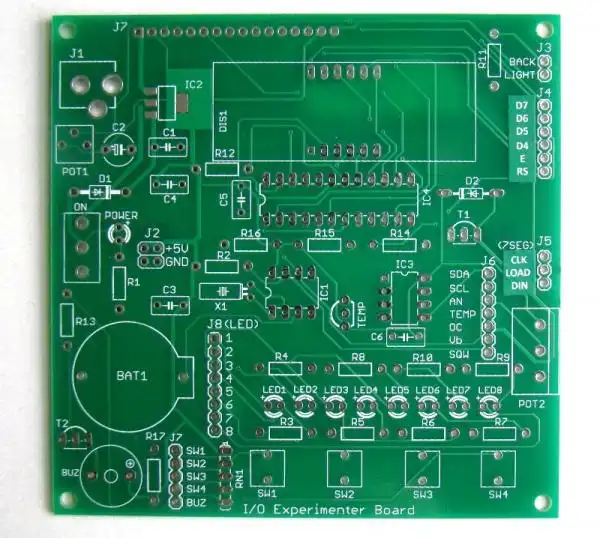

Double Layer PCB Manufacturing Ronak Circuits

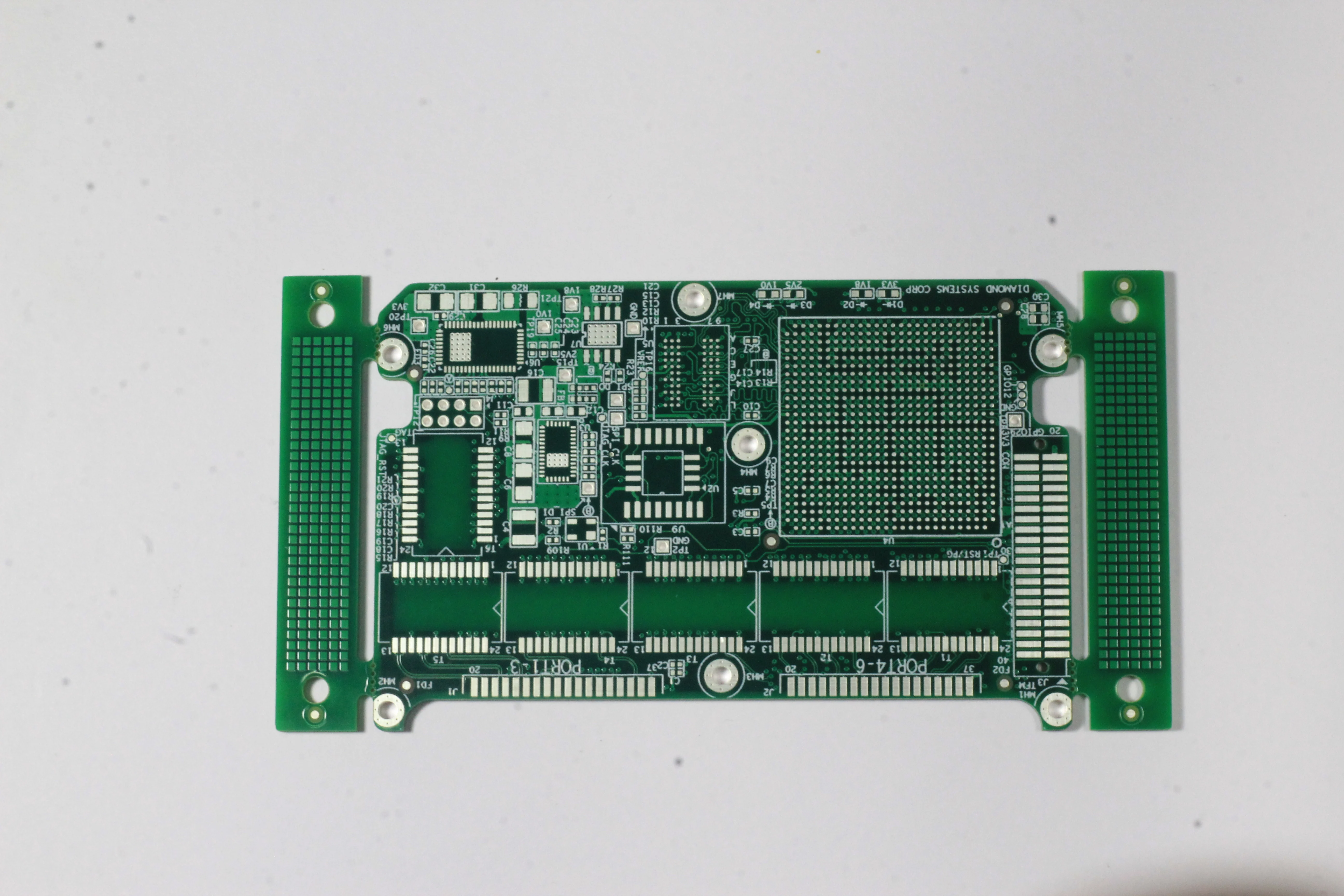

Double Side PTH PCB Circuit Board

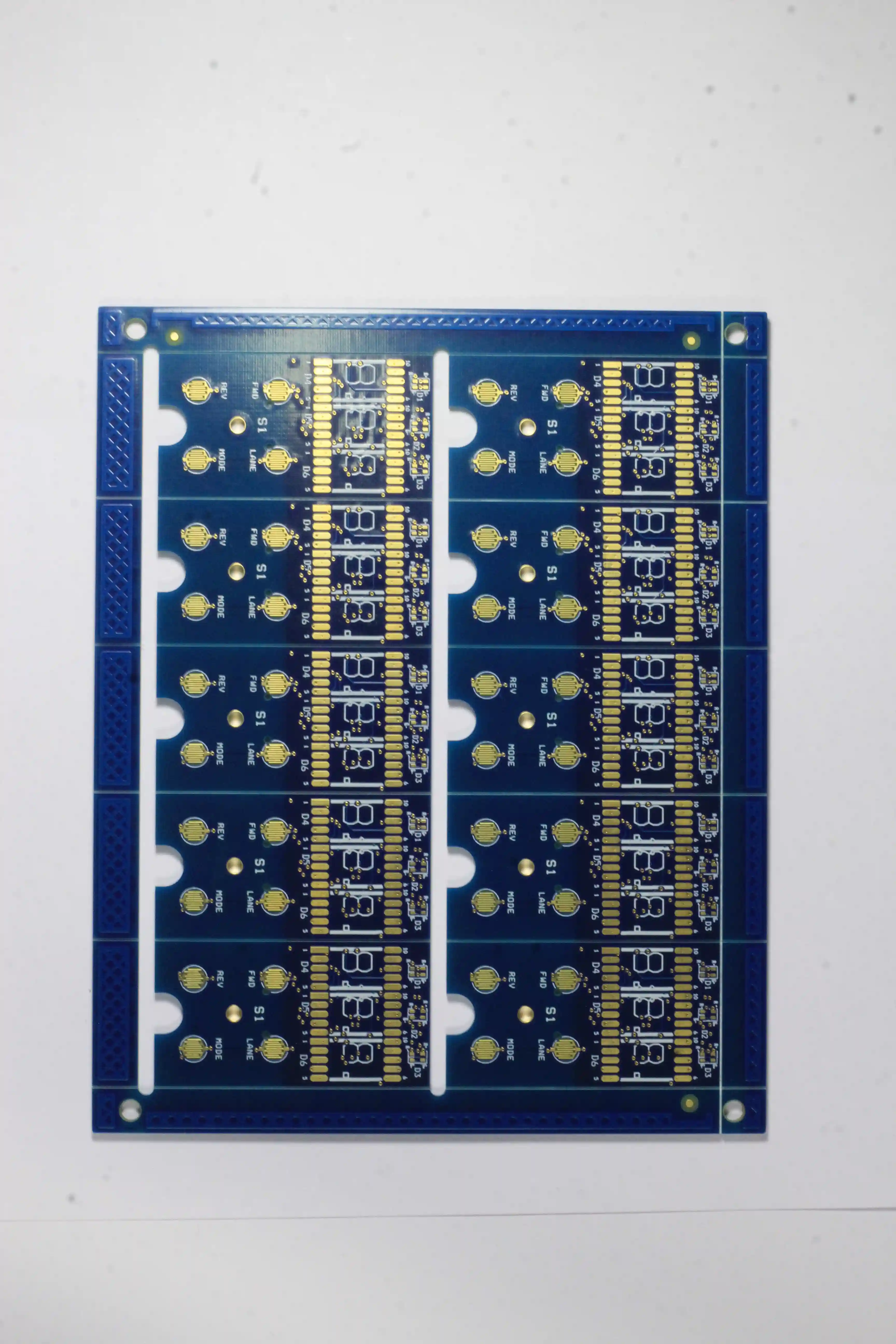

ENIG Coated Double Sided PCB

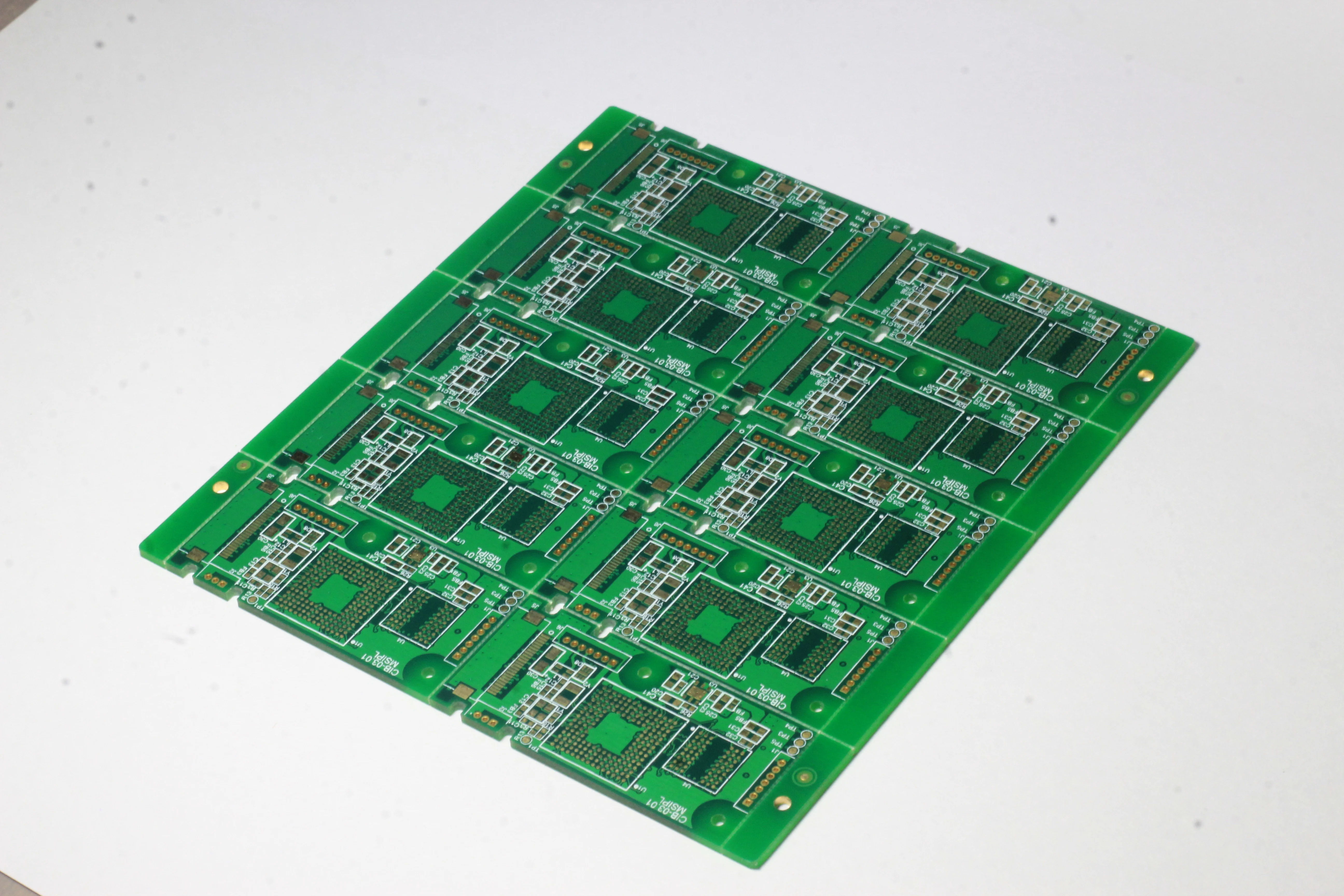

High Density 2-Layer PCB Prototype

Targeted Applications

Ronak Circuits serves diverse industries requiring intermediate circuit complexity, including Industrial Controls, Power Supplies, Instrumentation, HVAC Systems, LED Lighting, Automotive Dashboards, Amplifiers, and Vending Machines.

48-Hour Rapid Delivery Available

Double Sided PTH PCB Manufacturing : Gujarat's Trusted Partner

Double layer PCB manufacturers in India support engineers who need routing versatility without unnecessary system complexity. Located in the industrial electronics heartland of Gujarat, Ronak Circuits has mastered 2-layer PCB fabrication for designs where circuit density exceeds the capacity of single-layer PCBs.

Our Plated Through-Hole (PTH) technology forms reliable electrical interconnections between top and bottom copper layers through precision-drilled, electroplated vias. This enables intricate signal routing required by automotive electronics, industrial microcontrollers, telecommunications equipment, and commercial products. For high-reliability environments, our double-sided PCBs with ENIG (Chemical Gold) finishing deliver excellent solderability, oxidation resistance, and long-term shelf life required for demanding applications.

Ronak Circuits incorporates blind and buried via options when designs demand tighter layouts approaching multilayer PCB configurations. Our Gujarat manufacturing facility uses automated laser drilling, electroplating lines, and impedance control procedures to maintain signal integrity in high-speed circuits. Every double-sided board undergoes rigorous testing—including insulation resistance, electrical continuity, and visual inspection per IPC-6012 standards.

Contact Sales Team
Reliable Manufacturing Partner

You Can Trust Us For Uncompromising Precision

Ronak Circuits offers complete in-house capabilities—from rapid prototyping to full-scale production runs of single and double-sided printed circuit boards.

3 Mil Lines & Spacing
Ultra-Fine Trace Precision
Fine-Pitch Testing
100% Electrical Inspection
CONNECT WITH US

Speak With An Engineer

Have questions about your board design or stackup? Call us directly for instant technical support.

+91 9910289030
Get Custom PCB Quote
Fast engineering response within 24h
